OEM Outdoor LCD Advertising Display , 32'' Wall Mounted Digital Display Screen

Name: OEM Outdoor LCD Advertising Display 32 Wall Mounted Digital Display Screen
Brand: CJTOUCH
Price: 1 USD

China OEM Outdoor LCD Advertising Display , 32'' Wall Mounted Digital Display Screen wholesale

Brand Name : CJTOUCH

Model Number : IK-320W-F5N-2000

Certification : CE / FCC / RoHS

Place of Origin : Dongguan , China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500pcs per Week

Delivery Time : 15 Work Days

Packaging Details : 1 set in 1 crate

Type : Outdoor Lcd Advertising Display

System : Andriod / Windows ( Can optional )

Max Resolution : 2K / 4K ( Optional )

Brightness : 2000 Nits

Protection Level : IP55 / IP65

Optional Interface Type : HDMI Output ×1，MicroPhone×1，1 clock Battery Holder，AV Input，Audio output，Power Amplifier Output

Touch Support : 1 - 20 Points / No Touch ( Can optional )

Interface Type : USB2.0 Interface×2，VGA Output×1

Glass : 5mm Tempered Glass

Operating Temperature : -30°C - +50°C（air cooling）

Color : Grey / Black

Working Power Consumption : ≤210W

Standby Power Consumption : <30W

Contact Now

32 Inch Wall Mounted Intelligent Outdoor Advertising Machine OEM Product Showing Kiosk

Main Features

Use high-resolution, high-brightness,high-definition LCD screen to have a better visual experience；
It has the function of automatically eliminating residual image , heat insulation from sunlight , and automatic light-sensing,black level extension and self-adaptation, which enhances the sense of depth of the image.
With intelligent temperature control, environmental protection, good stability
Super long life, 7*24 hours of uninterrupted work.

Outstanding funtion

It adopts industrial-grade high-reliability modular design,Standard shell, can meet various professional customization of customers;
Intelligent temperature control system maintains a constant temperature and dry environment inside the fuselage.The internal temperature of the equipment can be better controlled, and the service life of the equipment can be better guaranteed;
The outer shell is galvanized steel plate,The entire sealed design prevents external dust and water , waterproof and sun-proof, anti-corrosion, and explosion-proof,reaching the IP55 standard,Not afraid of wind, sun and rain, it can better adapt to dry, humid and other environments;

Specification

Structure
Installation method			Wall Mounted
Appearance size			950680170 mm
Appearance color			Silver or optional
Material & Corrosion protection			1.5~2MM galvanized sheet, the surface is sprayed with outdoor powder
Glass			5mm tempered glass
Protection level			IP55/ IP65 (Optional)
Machine weight			≤60KG
LCD screen
Panel Size			32 inch LG
Panel type			LCD Panel
Display ratio			16:9
Display size			732.5*428 mm
Viewing angle			178
Response time			6ms
Resolution			1920(RGB)×1080(UHD)
Contrast ratio			4000:1
Brightness			2000 nits
Color			16.7 M
Service life			More than 50000 hours
Touch(Optional configuration)
No Touch Screen
Player
Operation system			Android 7.1 ( Optional )
Main Board			Android RK3288
Memory			2G
Flash			8G( support 32G)
Main frequency			1.8GHz
Network support			Ethernet,WiFi
			3G/4G module function (optional, default none)
Bluetooth			Support onboard Bluetooth function (optional, default none)
File system
Languages	Simplified Chinese, traditional Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, polish, Czech and other language
Basic interface (Internal interface)
USB2.0 Interface		×4			VGA output	×1
HDMI output (optional)		×1			MicroPhone	×1
RTC real time clock		1 clock battery holder			AV input	×4
Audio output		Power amplifier output, can directly drive 2*10W/8Ω speakers
SD card		1 standard SD card slot, maximum support 32GB
Working environment
Temperature control	Air cooling(air conditioning optional, cost extra)
Operating temperature	-30°C - +50°C(air cooling)
Working humidity	5% to 90%
Storage temperature	-20°C to 60°C
Storage humidity	10%～85%
Power
Input voltage				AC220V
Normal working power consumption				≤210W
Standby power consumption				＜30W
Certificate
Certificate	CE, FCC

OEM Outdoor LCD Advertising Display , 32'' Wall Mounted Digital Display Screen

OEM Outdoor LCD Advertising Display , 32'' Wall Mounted Digital Display Screen

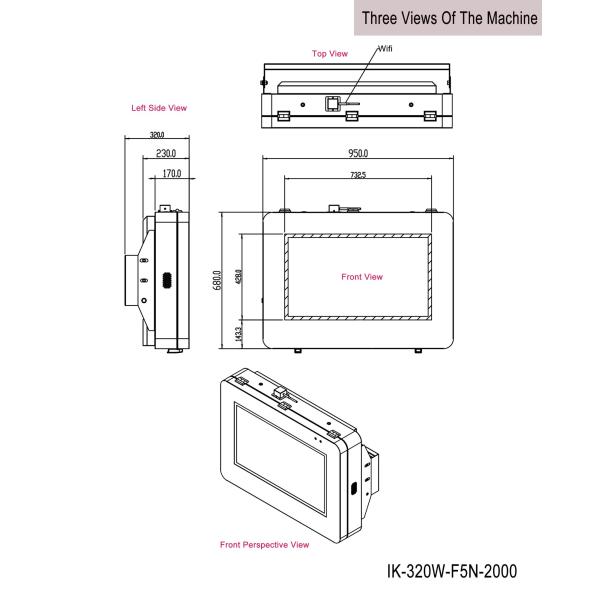

Drawing
